Car Auto Wash System

Name: Car Auto Wash System
Brand: ICON AUTOCRAFT PVT. LTD.
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Car Auto Wash System Specification

Operate Method
Automatic

Used For
Industrial

Length
5.5 meters

Product Type
Other

Lift Design
Other

Lifting Height
1.8 meters

Width
2.6 meters

Lifting Capacity
2000 kg

Lifting Time
40 seconds

Lowering Time
30 seconds

Working Voltage
415 V

Size
5500 x 2600 x 3200 mm

Warranty
12 Month

Power Source
Electric

Motor Power
3 kW

Usage
Commercial/Industrial

Material
Stainless Steel, ABS Plastic (Brushes)

Pressure Capacity
100-130 bar

Color
Red & Silver

Chemical Tanks
Multiple Integrated

Water Recycling Option
Available

Water Consumption
120 L/car

Safety Feature
Emergency Stop, Overload Protection

Compatible Vehicles
Sedan, Hatchback, SUV, MUV

Noise Level
<70 dB

Operational Temperature
0C to 50C

Washing Cycles
Pre-wash, Main Wash, Wax, Rinse, Dry

Drying System
Powerful Blower

Brush Material
Soft Foam

Movement Type
Gantry/Drive-through

Installation
Professional Onsite Required

Control System
PLC Based Touch Panel

Car Auto Wash System Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
30 Days

About Car Auto Wash System

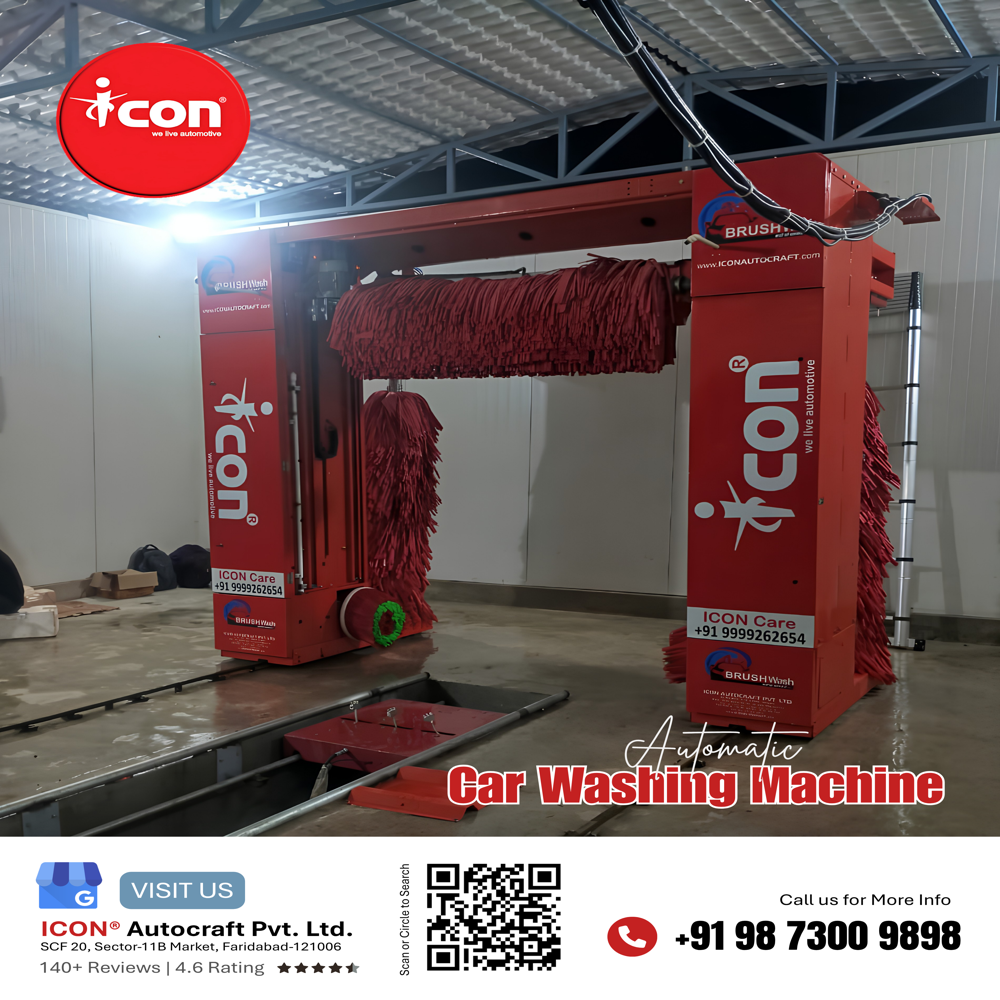

Introducing iWASH-X, the pinnacle of automatic car wash solutions, exclusively brought to you by Icon Autocraft Pvt. Ltd. This cutting-edge car wash system is meticulously designed to deliver an unparalleled car cleaning experience. Crafted with advanced features and robust construction, the iWASH-X is the ultimate solution for those who demand nothing but the best for their cars.

Machine Structure: Crafted with durability in mind, the iWASH-X boasts a Hot Dip Galvanized Powder Coating, ensuring a long-lasting and corrosion-resistant exterior.
Number of Brushes: Equipped with three high-performance brushes, the iWASH-X guarantees thorough and efficient cleaning for your vehicle.
Brush Configuration:
- Vertical Brushes: Two vertical brushes ensure comprehensive coverage for all areas of your vehicle.
- Horizontal Brushes: The single horizontal brush targets specific cleaning needs with precision.
Brushes Pressure Sensing: The iWASH-X is equipped with advanced pressure sensing technology on its brushes, providing a gentle yet effective cleaning process.
Dryer: Experience a swift and efficient drying process post-wash, thanks to the integrated dryer.
Wheel Brush: The dedicated wheel brush ensures meticulous cleaning of your vehicles wheels, leaving no dirt or grime behind.
Control Programming: The iWASH-X utilizes PLC programming for precise control, offering a seamless and customizable car washing experience.
Control System: The user-friendly HMI Panel with a Touch Screen Display ensures intuitive control, making the car washing process convenient for both operators and users.
Pressure: Operating at 9 Bar, the iWASH-X delivers optimal pressure for a thorough and effective cleaning performance.
Underbody Wash: Featuring an Auto Sensor Wheel Wash, the iWASH-X addresses undercarriage cleaning needs effortlessly.
Water Pump Details: The automatic water pump guarantees a consistent and reliable water supply throughout the car wash cycle.

Comprehensive Multi-Stage Washing

Experience superior cleaning with distinct washing cycles, including pre-wash, main wash, wax application, thorough rinse, and a quick-drying phase using a powerful blower. These automated cycles ensure each vehicle-whether sedan, hatchback, SUV, or MUV-receives a meticulous cleaning, enhancing customer satisfaction in commercial settings.

Smart and Safe Operation

Equipped with an intuitive PLC-based touch panel, users can easily manage wash parameters and monitor operational status. Integrated safety features like emergency stop and overload protection provide secure, reliable performance. The system is designed to operate efficiently within temperatures ranging from 0C to 50C, and uses a strong stainless steel and ABS construction for durability.

Eco-Friendly and Efficient Design

The auto wash system uses just 120 liters of water per car and offers optional water recycling to promote sustainability. Soft foam brushes and controlled pressure (100-130 bar) protect vehicle surfaces, while the energy-efficient 3 kW motor and automatic operation reduce resource consumption and labor.

FAQ's of Car Auto Wash System:

Q: How does the auto wash system ensure thorough cleaning for different vehicle types?

A: The system employs dedicated washing cycles-including pre-wash, main wash, waxing, rinsing, and drying-automatically tailored for sedans, hatchbacks, SUVs, and MUVs. Soft foam brushes and variable pressure settings guarantee both effective and safe cleaning across various vehicle shapes and surfaces.

Q: What is the process for operating the car wash system?

A: Operation is fully automatic and managed via a PLC-based touch panel, where the operator selects the desired cycle. The gantry moves over the vehicle or drives through, completing all stages-washing, waxing, rinsing, and drying-using integrated chemical tanks and a powerful blower. Safety and efficiency are maintained throughout each wash.

Q: When and where can the system be installed?

A: Professional onsite installation is required for all locations-whether indoor or outdoor in commercial or industrial faculties across India. The system can be installed in any environment where the operational temperature ranges from 0C to 50C, ensuring consistent performance year-round.

Q: What safety features are included in the car wash system?

A: The auto wash system is equipped with an emergency stop mechanism and overload protection. These features protect both operators and vehicles, ensuring that, in case of unusual situations or mechanical overloads, the system halts immediately, preventing accidents or equipment damage.

Q: How does the water recycling option benefit my operations?

A: The optional water recycling feature allows significant reduction in overall water consumption, saving costs and supporting sustainable operation. By reusing water efficiently, your facility lessens its environmental impact while maintaining the high cleaning standards of each washing cycle.

Q: What is the warranty policy, and what does it cover?

A: The car wash system comes with a 12-month warranty covering manufacturing defects and component malfunctions under normal commercial use. Professional installation is essential to validate the warranty and ensure optimal system performance.
